Suprema Jazz series (Single Channel) 1×12, 1×15, 1×10

In Amps, Gears on June 12, 2016 at 4:35 pm

The Single channel Jazz Suprema was completely dialed in for Archtops from the ground up! Powered by real tubes tone to liven up your tone!!

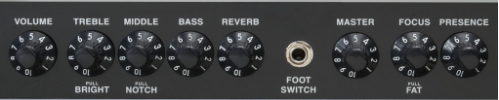

We voiced this amp to be able to stay clean and keep all it’s headroom even at loud volumes. Normal electric guitar amps are meant to break-up when pushed for the slight overdrive tone. Well not this amp! The Jazz Suprema has the most amount of headroom possible in a 55watt configuration. Tone controls like Middle “pull for Notch, Treble “Bright” and Focus “Pull Fat” allow you to tailor your jazz tone matching any Archtop guitar and pickup configuration.

front0

The Pull-Notch on the Middle control can cut out feedback on your Archtop.  The Pull “Fat” gives a big bottom boost.  The Treble “Bright” adds a nice shimmer to the top end for those complex chords to cut through the mix.  The Focus control allows you to tighten or loosen your speaker.  This Focus is great if you’re in a situation where a room might be to boomy and you need to tighten up the bass.  Also, included is a Foot switchable spring reverb.

serie

The 1×15 combo version is slightly taller but skinnier to keep as portable as possible for a 15″

15



The 15″ version is loaded with a Jensen C15N.







supremajazz

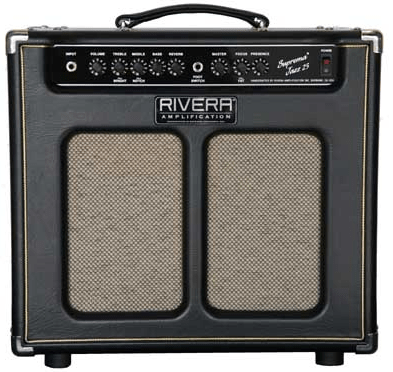

left:  Jazz Suprema 25 watt 1×10 version.  For those Archtop players that don’t need the loud volumes capable of the 55watt models and need something even lighter and more compact, the new Jazz Suprema 25watt 1×10 is for you!  An all tube amp dedicated for the needs of the Archtop player.







Specs:

    • 50 Watts EL-34 powered (1×15 & 1×12 version ) or 25 watts (1×10 version) 6V6 powered available.
    • Celestion T-75 12″ speaker or Jensen C15N 15″ speaker or Custom Rivera Eminence 10″.
    • Foot switchable spring Reverb
    • Venus styled Split grill with Black Tolex and Gold Grill cloth.
    • Hand Built in the USA
    • Voiced for maximum headroom


Jazz Suprema 55 1×15 Dimensions and weight:

  • Height: 21″ with rubber feet – 53,34 cm
  • Width: 23 3/4″  – 60,32 cm
  • Depth: 10″ – 25,40 cm
  • Weight: 49 lbs. (estimate) – 22,22 kg

Jazz Suprema 55 1×112 Dimensions and weight:

  • Height: 18″ with rubber feet – 45,72 cm
  • Width: 23 3/4″ – 60,32 cm
  • Depth: 12″ – 30,48 cm
  • Weight: 49 lbs. (estimate) – 22,22 kg





Jazz Suprema 25 1×10 Dimensions and weight:

  • Height: 17 1/4″ with rubber feet – 43,81 cm
  • Width: 18 3/4″  – 47,62 cm
  • Depth: 10.5″ – 26,67 cm
  • Weight: 38 lbs. (estimate) – 17, 23 kg

Covering: vinyl

Cleaning of vinyl covering: Moist cloth, dishwashing liquid

User Manual:  Jazz suprema owners manual sngl chnll
