How does fret wire size affect your playing style?

By Jeff Owens
stainless_fretWhile guitar shopping, you will often run across mention of the size of a guitar’s frets – “jumbo frets” or “medium jumbo frets” and so forth.
What’s the difference? Why have different fret sizes?
First, let’s get our terminology down. When we say frets, we’re talking about the thin wire strips spaced at very precise intervals along the entire length of the fingerboard; not the spaces in between the thin wire strips where your fingers actually go when you’re pressing down on (or fretting) the strings.
Frets are cut from fret wire, which is manufactured in lengthy rolls and is usually made of nickel silver, an alloy that doesn’t actually contain any silver. Anatomically, frets consist of a rounded “crown” (or “bead”) atop a thinner “tang” with barbs on either side as seen in cross-section. Individual frets are snipped to match the width of a guitar’s neck and hammered (lovingly tapped, more accurately) into slots pre-cut into the fingerboard. The crown runs the width of the slot; the tang runs a bit shorter than the width of the slot. The barbs on either side of the tang help hold the fret in place in the slot, although glue is often used, too.
We just explained fret anatomy because when we talk about fret sizes, we’re talking only about the width and height of the crown.

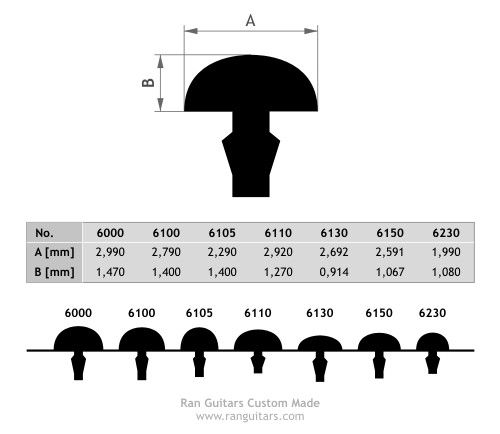

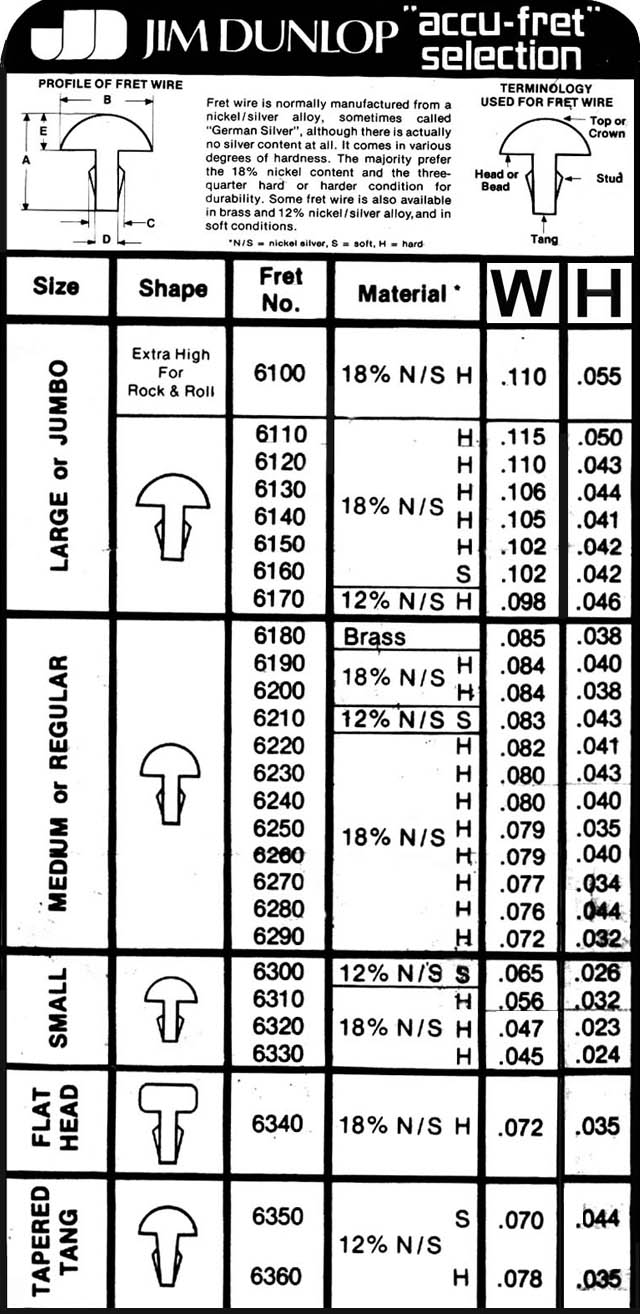

The main fret wire maker, California-based Dunlop Manufacturing Inc., produces five main fret sizes. Listed by part number, name (where applicable), crown width and crown height, they are, from smallest to largest:

  • 6230: The smallest fret wire found on older Fender necks (.078″ x .043″).
  • 6150: Vintage jumbo. Much wider but not as tall as 6230 (.102″ x .042″).
  • 6105: Modern narrow and tall; currently very popular (.090″ x .055″).
  • 6100: Jumbo. The largest fret wire available (.110″ x .055″).
  • 6130: Medium jumbo (.106″ x .036″).fret-dim

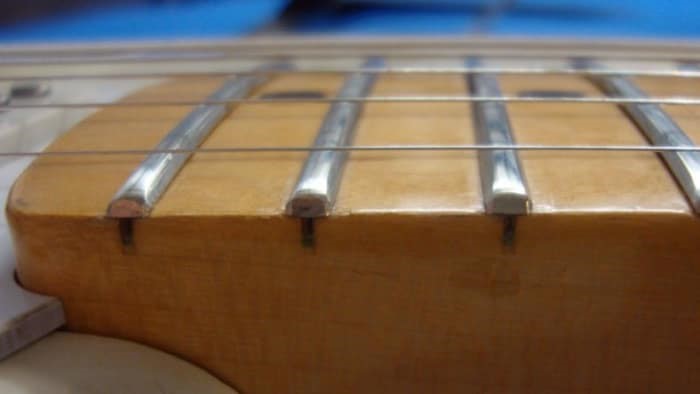

Which size you like is purely a matter of preference, although it can affect your playing style. If you like your fingers to actually touch the fingerboard when fretting the strings, frets that aren’t very tall like the 6130, 6150 or 6230 are for you. On the other hand, jumbo 6100 fret wire can provide easier playability with better sustain, tone and bending because you don’t have to press as hard to fret the strings, but your fingers probably won’t even touch the fingerboard, which could take some getting used to if you’re accustomed to smaller frets.fret1

It should be obvious, right? Bigger frets mean bigger tone, and that sounds like something we’d all want from our guitars.

As with so many things about the guitar, however, the truth isn’t necessarily that straightforward. Fret size and shape can affect a great many aspects of your guitar’s sound and feel, so it’s worth looking at the bigger picture before jumping to any quick conclusions.

The “fatter wire = fatter tone” equation is nothing new. Ever since jumbo frets have been available, many great players—Rory Gallagher, Stevie Ray Vaughan, Kenny Wayne Shepherd— have been known to re-fret their Fender Stratocasters in particular with jumbo wire (vintage-spec Strats arguably provide a more dramatic before and- after picture than some other guitars, since they were born with narrow frets). More metal in any fixed component usually means a greater vibrational coupling between string and wood, so there is presumably something to this theory. But what else changes with fret size?

While larger frets do seem to result in a rounder tone, perhaps with increased sustain too, they also yield a somewhat less precise note than narrower frets—at least, as examined “under the microscope.” Unless it is very precisely shaped, and frequently dressed, the broad crown of that jumbo fret can “blur” your note ever so slightly, which might even be part of the sonic appeal for some players—the way, for example, a tweed Deluxe is a little blurrier or hairier at most volume settings than a blackface Deluxe. Be aware, however, that the phenomenon can work against some sonic goals too.

Since they present a finer break point at the neck end of the strings’ speaking length, narrower vintage-gauge frets are generally more precise in their noting accuracy. From this, you tend to get a sharper tone, possibly with increased intonation accuracy, plus enhanced overtone clarity in some cases, which could be heard as a little more “shimmer.” If you’re thinking these are all characteristics of the classic Fender sound, you’d be right—or they are, at least, until you change those vintage frets to jumbo.

But narrower frets were also used on Gibson Les Pauls prior to 1959, so their characteristics apply to these guitars as well. Does a ’57 goldtop with PAFs sound thin or whimpy thanks to its narrow fret wire? Not likely, largely because so many other factors also affect its tone—body woods, set-neck construction, scale length, pickups— and the impact of narrow-gauge frets doesn’t outweigh any of them. It does, however, influence the overall sonic stew of guitars of that era, which is always the product of many different ingredients.

Fret gauge might have a bigger impact on playing feel than on tone for many guitarists. Wider frets are often attributed a smoother, more buttery playing feel, which also makes it easier to bend strings. Ease of bending is also enhanced by taller frets, whether wide or narrow. Narrow frets shouldn’t be too hard to bend on, unless they are badly worn down, and they also leave a little more finger room on the fretboard—particularly in the higher positions— which might suit some players better.

Ultimately, if you’re mostly playing rock, heavier blues, or any shred or metal styles, you might prefer jumbo or medium-jumbo frets. However, for country, rockabilly, surf, or old-school ’50s rock and roll, narrow frets could be the way to go. In any case, though, if your frets are in good condition and your guitar is set up right, the size of that wire in and of itself shouldn’t stop you from sounding great on whatever you play.

dunlop-fret
