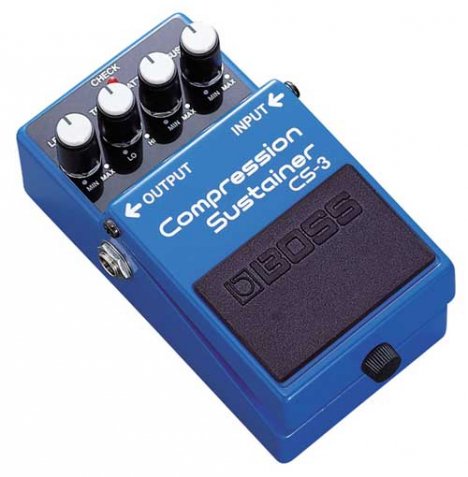

Boss – CS-3: Compression Sustainer

In Effects, Gears on October 12, 2013 at 7:31 pm

boss_cs_3-The CS-3 Compression Sustainer pedal compresses louder signals while boosting lower signals, providing smooth sustain without degrading the original sound quality. This is the perfect pedal for guitarists and bassists who want to sound their best.

A range of effects from gentle compression to squeezed sounds is at your command. Designed for outstanding low-noise performance, the CS3 also provides EQ for precise sonic control.

  • Compact compression/sustainer pedal with high-quality circuitry
  • Compresses loud signals and boosts softer signals for a smooth overall sound
  • Onboard Level, Tone, Attack and Sustain controls for precise tonal shaping
  • Low-noise design for super-quiet operation



  • Nominal Input Level: -20 dBu
  • Input Impedance: 1 M ohms
  • Nominal Output Level: -20 dBu
  • Output Impedance: 1 k ohms
  • Equivalent Input Noise Level-110 dBu (IHF-A Weighted, Typ.)
  • Connectors: INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V)
  • Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
  • Current Draw: 11 mA (DC 9 V)
  • Accessories: Dry Battery 9 V type (6F22/9 V)
  • Option: AC Adaptor (PSA-Series)



CS-3 manual: CS-3_OM
